Davit and Swim Platform Projects |

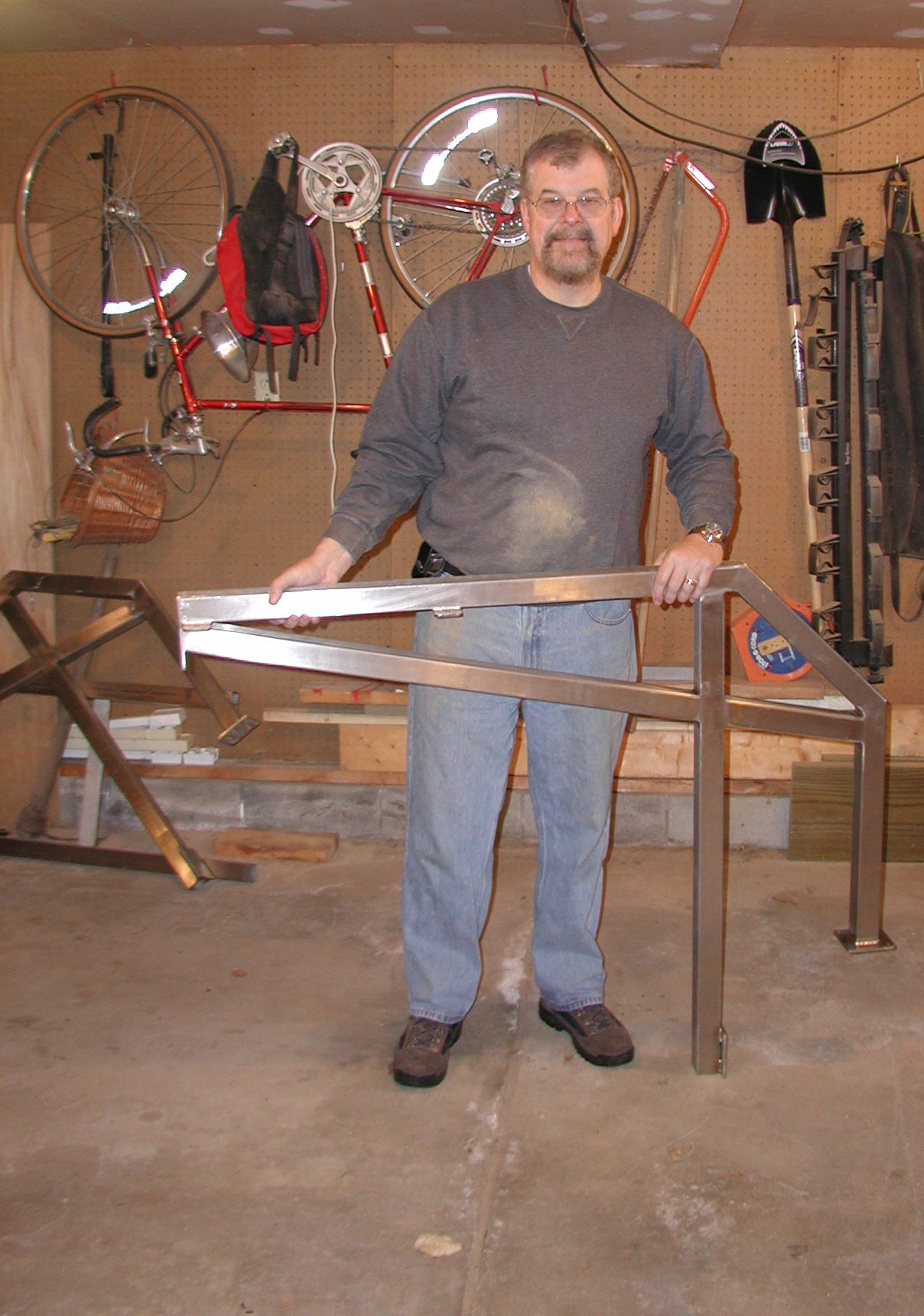

Our dinghy is extreme. It is a 12 foot Achilles sport inflatable with a 30 hp motor. It can plane with a full load of 5 persons or can pull a water skier. This allows us quite a lot of flexibility when choosing our anchorages. Weighing in at about 200 lbs, it can be a sea-anchor when being towed. I originally installed a pair of Edson davits when I bought the dinghy, but they proved to be too small to hoist the dinghy. After searching for years for a suitable set that would fit my boat, I finally decided to have a custom set built. The davits are made of 314 stainless. Each piece attaches to both the aft combing and the transom. The davits are very solidly made. I have no doubt that they could lift well over 1000 lbs each. The limiting factor would be the deck. Each davit weighs about 40 lbs. |
Click on photos for a larger image. Click on the icon below to view a drawing of the davits. |

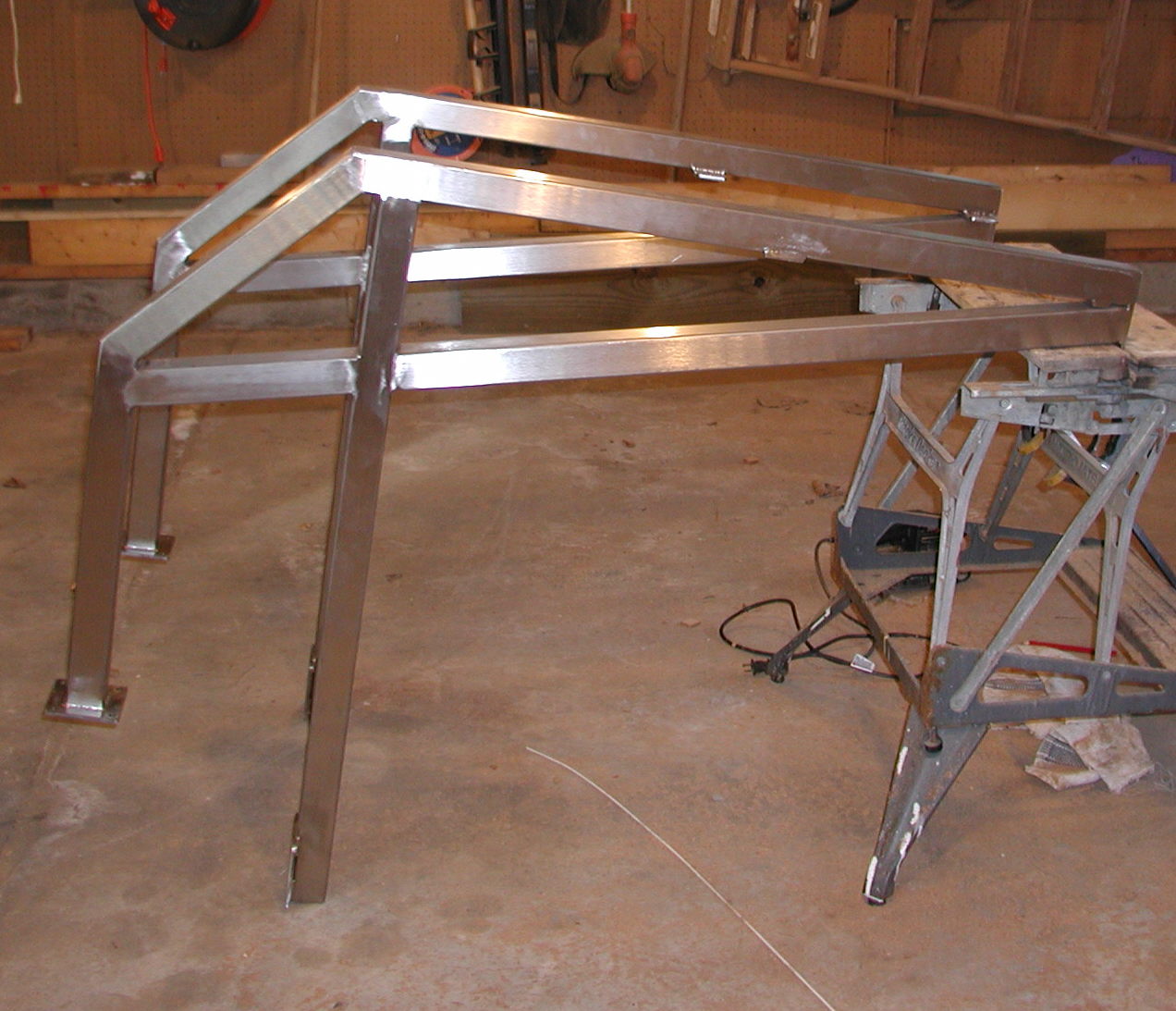

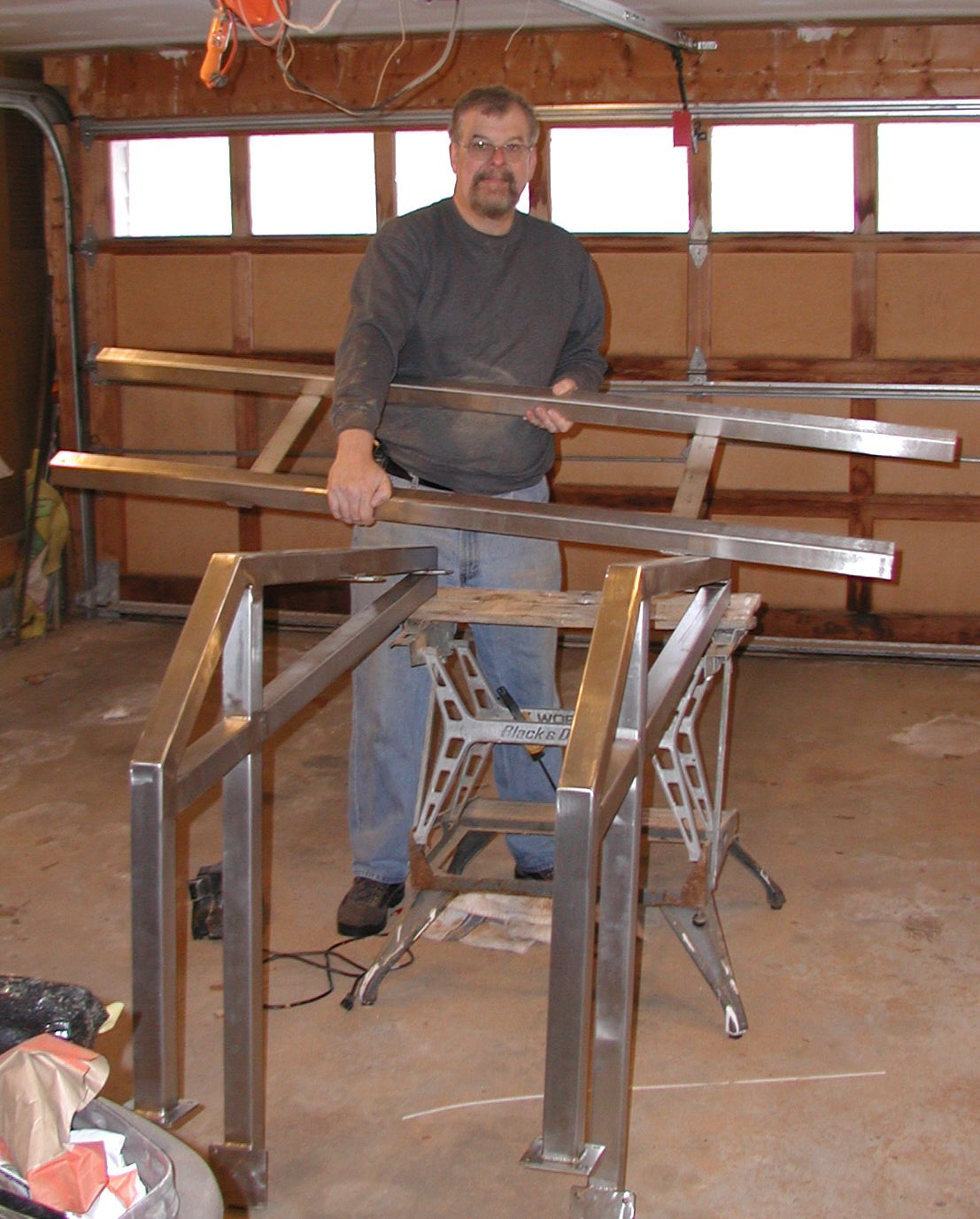

Between the davits is a crossbrace that provides lateral support and could be used to mount solar panels or antennas. The crossbrace weighs about another 40 lbs. |
The crossbrace bolts to the inside of the davits using a flat mounting flange.I originally planed to polish them and leave them unpainted, but the alloy showed signs of corrosion after they got wet. I decided to paint them instead. It would have been easier if I had made this decision before spending hours with a polishing wheel. |

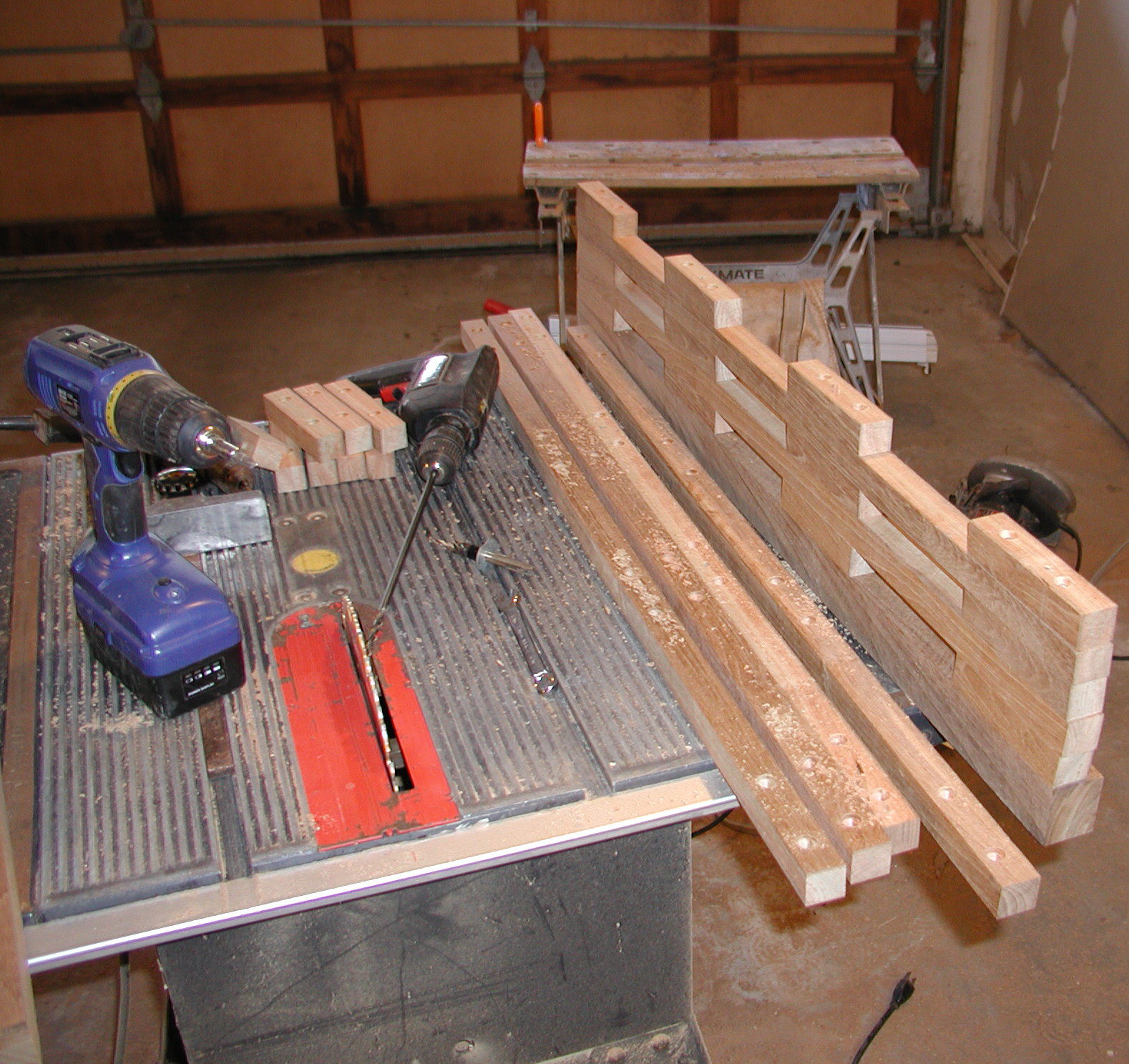

Below the davits is a small swim platform. I spent one weekend building the swim platform from teak stock. It is 38" wide and about 16" deep. The platform would interfere with hoisting a dinghy, so it hinges up out of the way. I ripped 1" square teak and screwed the whole thing together using stainless fasteners. |
